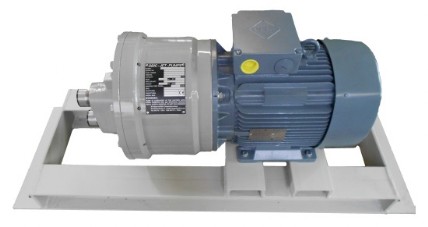

The Pitot-Tube-Jet model DB35 MARA 3000 pump is a development of the oillubrcated 3000 series-pump.
Because of the small size it's our Babytube. This pump is ideally suited to same range of applications. The motor is directly connected with the Rotor Case.
The Pump provides smooth, pulsation free operation.
Only one Suction Mechanical Seal, no Pressure Seal. This means superior performance, simpler operation, lower operating costs, reduced parts inventory and longer pump life.
These pumps are maintenance free and with mounted engine
The pump has a mechanical sealing and is dirctly connected with a high speed motor.
The motor is for FC use constructed.
Mara, the 3000 series provides power output up to 55 kW.
Serie 3000
Serie 4000
Mara
Babytube
Anschluss:
2" Screwed
Ölgeschmiert
Babytube
Connection:
2" screwed
2x1.5" flanged (API)
Mara
Connection:
3"x 2" flanged
Ölgeschmiert
Connection:
3"x 2" geschraubt oder screwed
3"x 2" flanged API
Fettgeschmiert
Connection:
2"x 2" screwed
3"x 2" screwedoder flanged
Blockpump with motor
read more...
Pump bar shaft
read more...
Blockpump with motor...
read more...
Pump bar shaft
read more...

Pump bar shaft
read more...

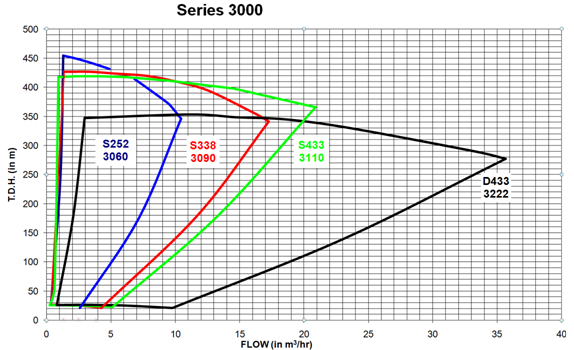

Specifications
MARA 3000
Maximum Temperature
90 ° C
Maximum Suction Pressure
43PSI/ 3 bar
Maximum Head
3 bar
Maximum Speed
5000 RPM
Maximum Flow
34 m3/hr
Maximum Horsepower
55 KW
Metallurgy of wetted components can be varied to meet the requirements of even the most rigorous and corrosive conditions. The Pumpe can be furnished in a single or double seal design, with a variety of styles and face materials available for specific applications.
We will send you a qoutation, please give us follwing informations:
Pressure:
Flow:
Medium to be pumped:
Temperature (medium):
particulate material and solids in the medium:
Suction Pressure:
Give us a mail and we will qoute angebot@dbic-online.de
The DBIC-Pitot-Tube-Jet-Pumps cover a wide range of applica­ions::
- central cleaning systems
- boiler feed and desuperheating
- hydraulic systems
- hydro-blast cleaning
- oil production
- water injection
- steel mills
- spraying systems
- transfer
- reverse osmosis/desalination
- semi-conductor manufacturing
- pulp and paper mills
- petroleum-chemical
- water injection
- miningZentrale

The Pitot Tube Concept Principle of DBIC Pitot-Tube-Jet Pumps Operation
The basic concept behind the DBIC Pitot-Tube-Jet Pump is remarkable simple. The pump consists of two basic working parts, the stationary pick-up tube and rotating rotor. Liquid enters the manifold and passes into the rotating case where centrifugal force causes the liquid to accelerate and enter the rotor under pressure as it jets into the pick-up tube. The liquid flows through the pick-up tube and is discharged.
It should be noted that the only wetted contacting parts in the single stage DBIC Pitot-Tube-Jet Pumps are the mechanical seal faces which operate under suction pressure only. This eliminates the performance deterioration, possible seizure and maintenance costs incurred by multistage pumps with wear rings, balancing discs, interstage bushings, etc.
The DBIC Pitot-Tube-Jet Pump runs at relatively low speeds compared with high speed pumps with a resultant lower noise level.
A pitot pump offers distinct benefits in comparison with multi-stage and high speed centrifugals as well as positive displacement pumps which have been formerly used to develop pressures up to 200 bar, 8.000 rpm.

AFTERMARKET AND SERVICE:
DBIC has a global Service and Operation network, together with it’s Partners, for MAINTENANCE , Operational Training on Site, Spareparts deliveries, complete overhauls including certified running test reports, for all types and sizes of ROTOJET and other Pitot tube manufacturers pumps.
This also applies for all makes and sizes of Centrifugal and Positive Displacement pumps. Our Experts are always at your Service around the Clock!
Also our Unique "Lump-sum"TOTAL PUMP MAINTENANCE " and MANAGEMENT concept offers you a lower operating cost and longer MTBF. We are more then pleased to make you a detailed proposal for your whole pump population.
Complete package units and installations for with pumpskids, inter connection piping,vessels,filters and all other related equipment and auxiliaries can be delivered and installed by DBIC as well.
Nothing could be simpler
DBIC Production
support , sales and repair in
DBIC-Production
Pitot-Tube-Pumps
and Aggregate-Units
Other types of our Production, Repair-Maintenance and Sales range
Hydro-Jet-Aggregate-Units
Roto-Jet-Aggregate-Units
Combitube-Aggregate-Units
Honda KK-Aggregate-Units

Metallurgy of wetted components can be varied to meet the requirements of even the most rigorous and corrosive conditions. The HA-RO can be furnished in a single or double seal design, with a variety of styles and face materials available for specific applications.
